The RM Series RMC12010 Remote

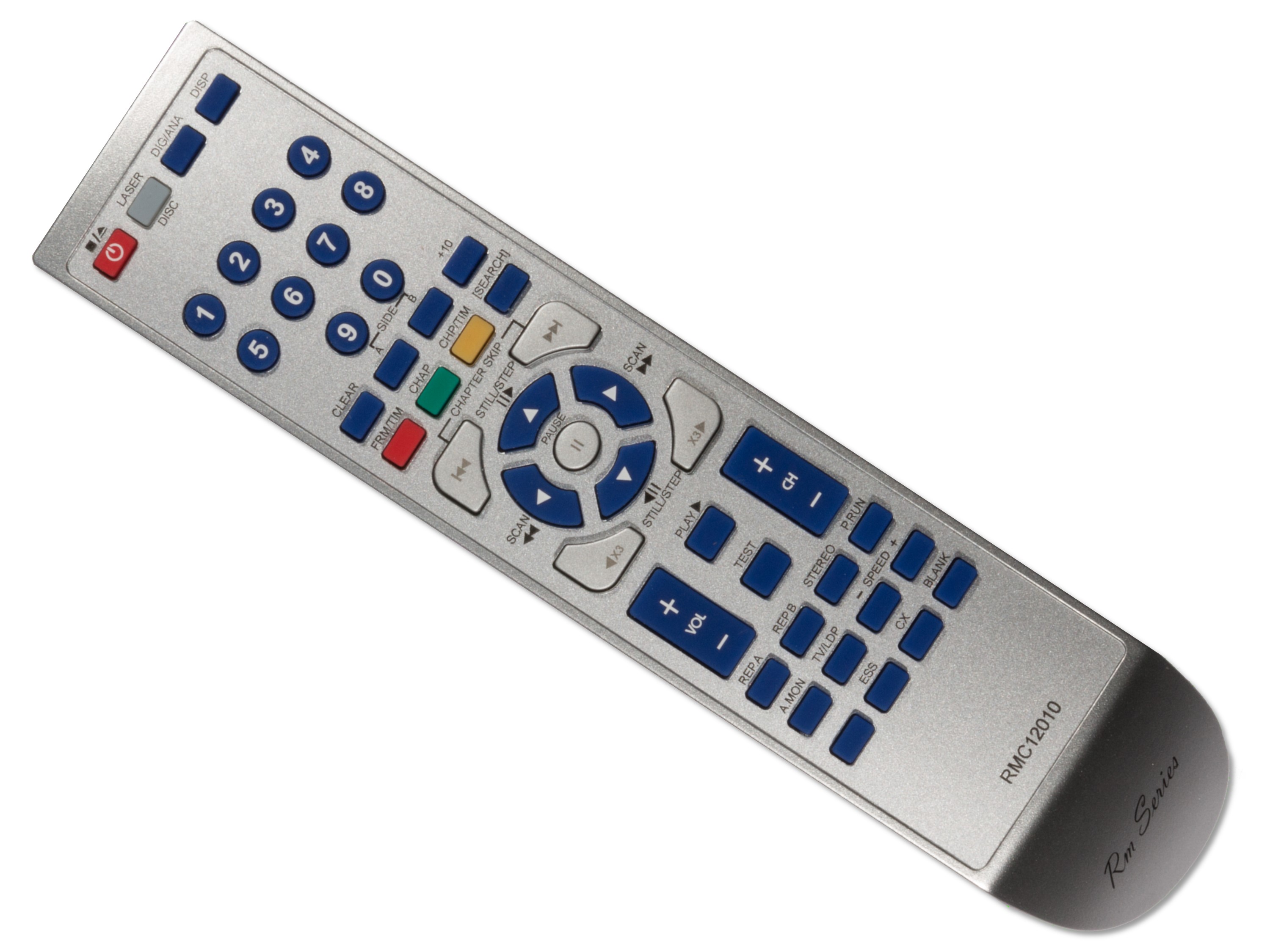

A service remote control is required for calibration. The RM Series RMC12010 remote is a 3rd party service remote clone available from sites such as Ebay. The RMC12010 remote required is shown in the following picture:

RM Series RMC12010 Remote

Please note that the RMC12010 remote does not correctly map the MULTI-REV and MULTI-FWD buttons for the LD-V4300D (and these buttons are required for the calibration process). The correct codes for these buttons are given in the Pioneer LD-V4300D Overview.md page. You can use either a combination of the RMC12010 and the Pioneer CU-V113A remote, or use a programmable remote and the key-codes provided on the linked page from this site.

Pioneer service remote controls produced after the GGF1067 do not seem to produce the correct key-codes for MULTI-REV or MULTI-FWD either.  Again, a combination of the CU-V113A and the service remote can be used.

The mapping of the RMC12010 service remote keys (to the original service remote keys) are shown in the following table (note: the most important one to know is ESS followed by TEST which switches the player into test mode (there is no need to power on holding DISPLAY or use any DIP switch settings on the LD-V4300D)):

LD-V4300D Service Remote RMC12010 remote
Open Press the [OPEN/CLOSE] key in the stop mode. Press the [REPEAT MODE (REPEAT B)] key.
Stop Press the [OPEN/CLOSE] key in the play mode. Press the [REPEAT A] key. Press the [REJECT] key in the play mode.
Play Video and audio are on Tracking is open Press the [PLAY] key in the stop mode. Press the [TV/LDP/ key. Press the [PLAY] key in the stop mode.
Still Press the [PLAY] key during TRACKING OPEN in the play mode. Press the [CX] key in the play mode. Press the [PLAY] key during TRACKING OPEN in the play mode.
Tracking open Press the [STEP FWD] key in the play mode. Press the [PLAY] key in the play mode. Press the [STEP FWD] key in the play mode. Press the [PLAY] key in the play mode. [BLUE UP]
Tracking closed Press the [STEP REV] key in the play mode. Press the [PLAY] key during TRACKING OPEN in the play mode. Press the [STEP REV] key in the play mode. Press the [PLAY] key during TRACKING OPEN in the play mode. [BLUE DOWN]
Slider in Press the [SCAN REV] key. Press the [SCAN REV] key. [BLUE RIGHT]
Slider out Press the [SCAN FWD] key. Press the [SCAN FWD] key. [BLUE LEFT]
Tilt servo off   Press the [SPEED DOWN] key. [SPEED-]
Tilt servo on   Press the [SPEED UP] key. [SPEED+]
Tilt decrease & servo off   Press the [SKIP REV] key. [CHAPTER SKIP REV]
Tilt increase & servo off   Press the [SKIP FWD] key. [CHAPTER SKIP FWD]
Display on   Press the [DISPLAY] key.
Display off   Press the [AUDIO MONITOR] key.
Search address entry Press the [+10] key in the play mode. Press the [+10] key. The last address searched will be displayed
Search address input   Input the address using [0] through [9] keys.
Search execute   Press the [CHAPTER/FRAME] key.
Focus balance = 0   Press the [MULTI FWD] key during playback.
Focus balance = 1   Press the [MULTI REV] key during playback.
Plunger pull   Press the [PAUSE] key. [PAUSE]
Plunger release   Press the [REJECT] key. [POWER]
Return to test mode menu Press the [DISPLAY] key.
Go to diagnosis mode   Press the [TEST] key. [ESC] then [TEST]
Cancel test mode   Press the [ESC] key. [ESS]

Test menu navigation:

Front panel Service remote RMC12010 remote Function
DISPLAY N/A   Exit from test mode
STEP FWD STEP FWD BLUE UP Next selection item
STEP REV STEP REV BLUE DOWN Previous selection item
PLAY PLAY PLAY Execute selected item
N/A 0 - 6 0 – 6 Execute the item corresponding to the number
